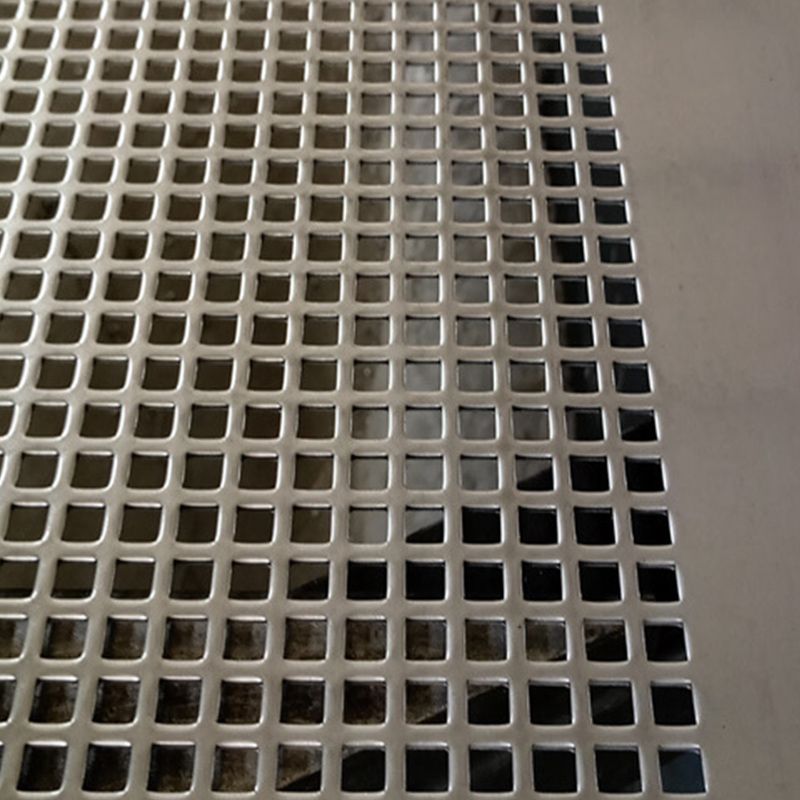

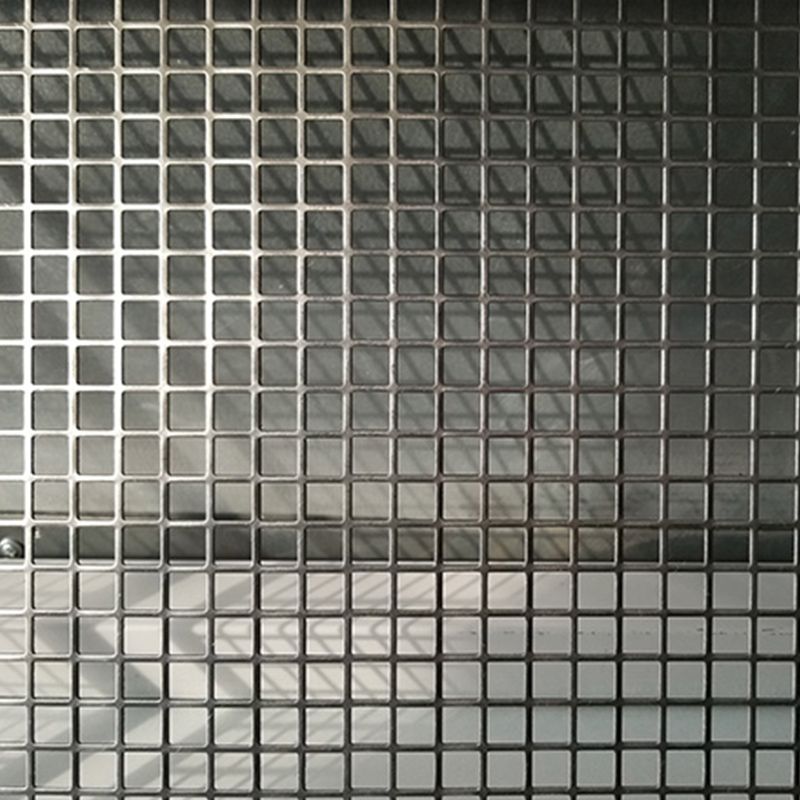

Square Hole Perforated Steel Mesh

The square hole perforated steel mesh is also called low carbon steel perforated mesh. It is punched by a punching machine through a mold. It is the shape of a square hole punched on the iron plate. The size of the hole can be customized according to customer needs, and the pass type is also very flexible. , The arrangement of the square holes has two types: linear arrangement and staggered arrangement.

Compared with the round holes, the square holes of the perforated steel mesh provide a larger opening ratio for everyone, but the compression resistance is relatively low, so it is more suitable for occasions that require high product visibility, so the iron plate perforated mesh is widely used in the decoration of shops and protective covers of machines.

立即咨询

We have advanced CNC stamping production equipment, which can punch high-quality products. The thickness of the sheet that can be punched: from 0.5mm to 5mm. We can also provide you with a series of follow-up processing, including: leveling, cutting, deep processing, etc.

Features:

Good plasticity, can be bent;

The service life is long, and anti-corrosion treatment such as powder coated treatment, electric galvanized, hot-dip galvanized and other methods can be carried out, which greatly increases the service life of the perforated steel mesh;

Strong and durable

Large opening ratio, can be used for decoration, ventilation, etc.

Specification

Square hole size	Square pitch	Open area	Thickness	Sheet size	Picture
3mm	5mm	36%	0.7mm~1.5mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
4mm	7mm	32.65%	0.7mm~1.5mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
5mm	8mm	39.06%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
5mm	16mm	9.77%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
6mm	9mm	44.44%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
8mm	10mm	64%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
8mm	24mm	11.11%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
10mm	14mm	51.02%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
10mm	30mm	11.11%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
15mm	20mm	56.25%	1.5mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
15mm	40mm	14.06%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
20mm	25mm	64%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
25mm	30mm	69.44%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
25mm	35mm	51.02%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
Special custom fabricated to your design
