Air conditioning systems are usually provided inside the building to create a comfortable indoor environment.
Aluminum Perforated Panel – Multifarious Hole Sizes and Patterns
Air conditioning systems are usually provided inside the building to create a comfortable indoor environment. However, these systems often consume a lot of energy, so expanded metal sunshades are often installed in modern buildings to reduce energy consumption. Expanded metal is an innovative sunshade material made of aluminum plate that has been slit and stretched. Its special 3D structure can effectively block strong, dazzling sunlight, and its uniform openings allow the free passage of fresh air, thus creating a cooler and more comfortable environment for people inside the building.

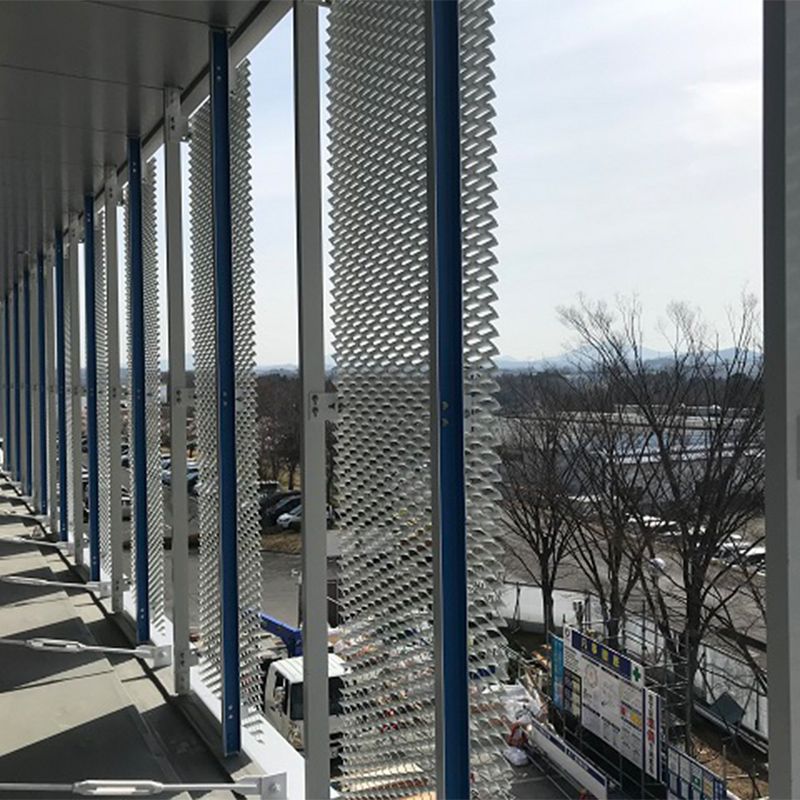

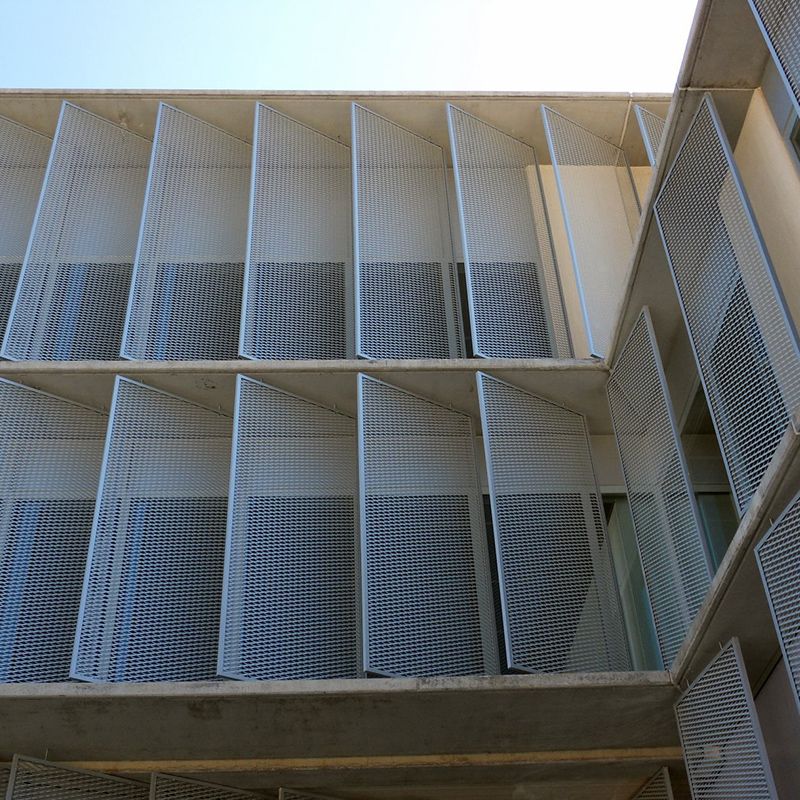

Expanded metal sunshades are widely used in residential buildings, office buildings, stadiums, shopping centers, etc.

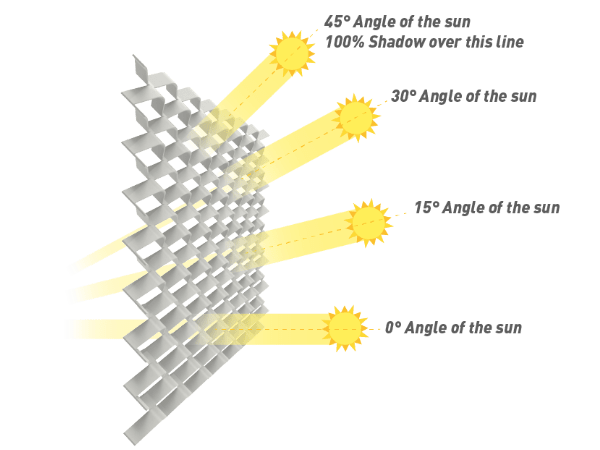

As the sun rises in the sky, the light passing through the expanded metal varies as the angle of light changes. When the sun reaches a certain angle, the strand width creates the maximum shadow area. At this time, the mesh opening can maximize the indoor daylight and air flow and make the room bright and cool. This shading effect is similar to the principle of the louver.
|Material||Opening Size (mm)||Strand (mm)||Open Area||Panel Size (L×W)(mm)|
|SWD||LWD||Strand Width||Strand Thickness|
|Aluminum||26||70||11||2||26%||1000 × 2000|
1250 × 2500
1500 × 3000
